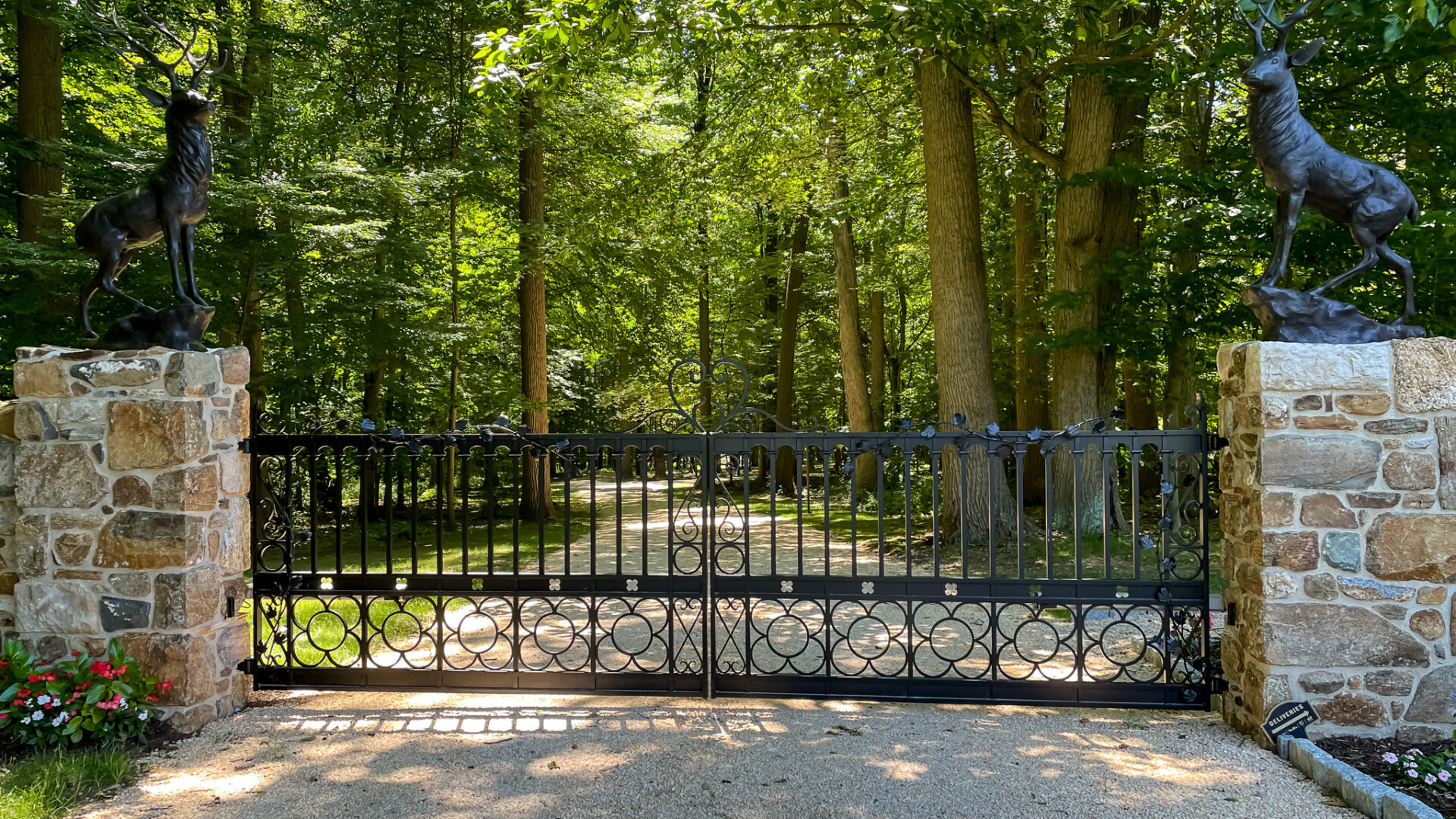

A custom home builder in the Philadelphia area was creating a custom gated entrance for a property. The architect and client were in dialogue to create the grand driveway gate design and wanted insights on design elements that aligned with their vision.

The design team reached out to us to set up a design meeting to review the driveway gate design. We were able to provide samples of custom castings for driveway gates that we had done in the past. This innovative approach of flipping every other design casting also provided a “collar on collar” detail at a cost-effective approach. And by proposing a ½” bar with a 45-degree termination, further enhanced the driveway gate design.

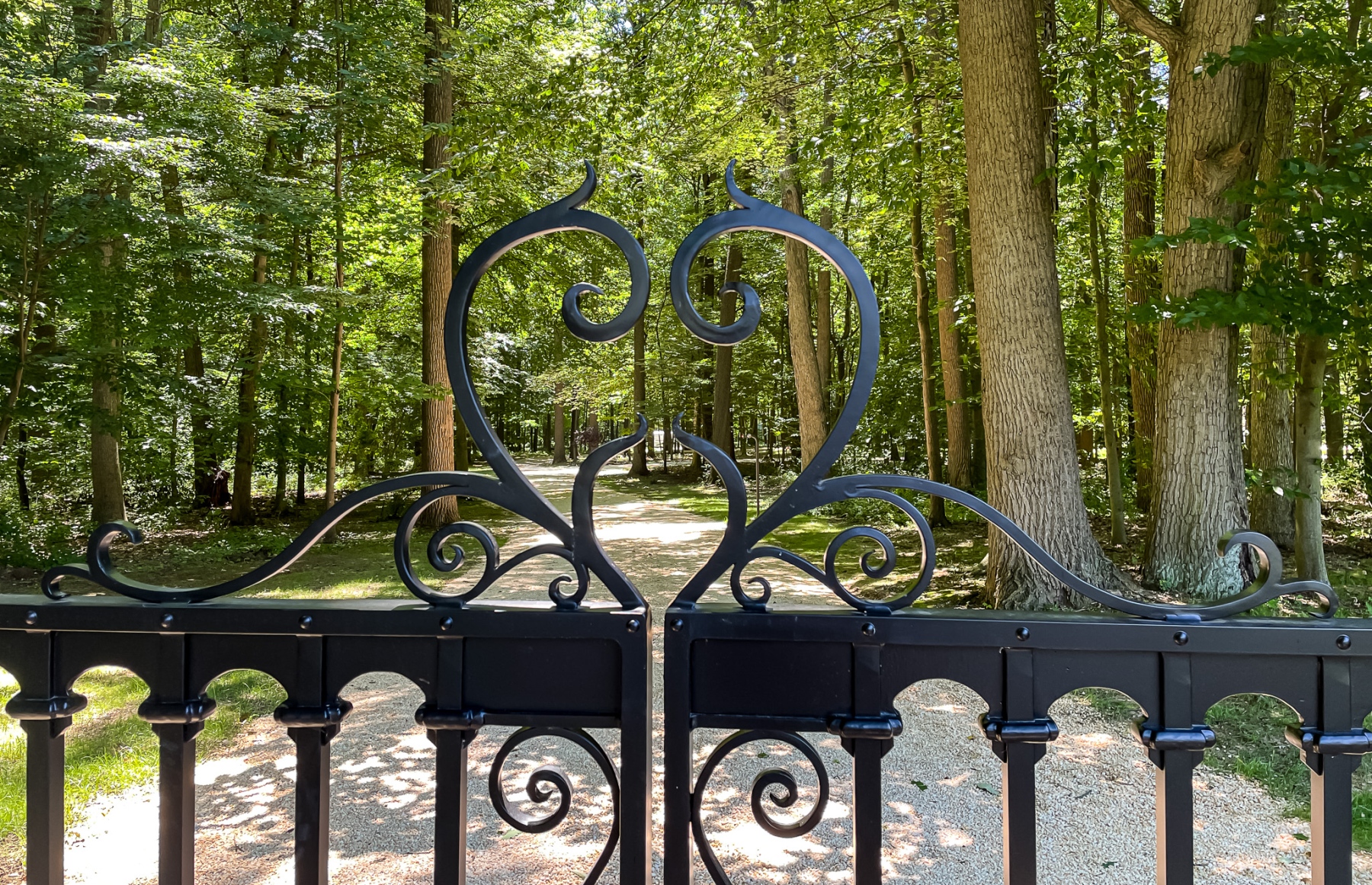

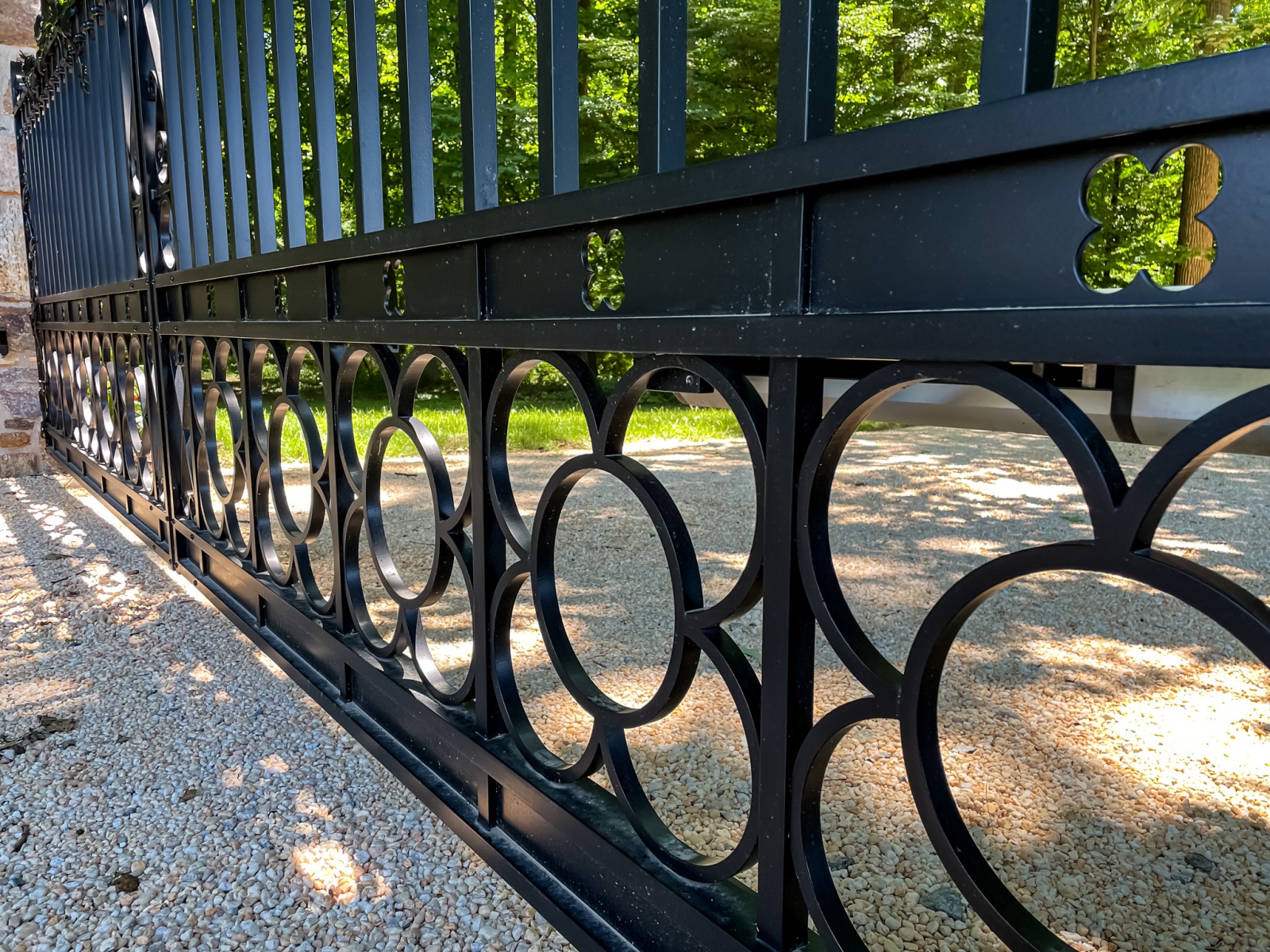

The bottom of the driveway gate design was a Florentine medallion with plates directly above it, which had a Florentine medallion cut out in the center. The concept behind a solid plate was to hide the heavy-duty gate operator arm. Above the solid plates was a bow upward-facing, and above that a downward-facing, arched frieze that was referenced above. The driveway gate frame was 2”x 1” horizontal channel. The vertical pickets were 1” square solid, and at both ends of the driveway gate was a column of hand-forged scrolls.

Then, to make this set of driveway gates grand, the design team wanted to add some detail. This included an ivy vine that “grows” up from the side and flows out over the top. We forged these vines from solid aluminum round bar. Also, we hand-forged the ivy leaver from an aluminum plate.

We provided our own Million Dollar Hinges. That is a heavy-duty driveway gate hinge that we developed to provide minimal maintenance for our clients.

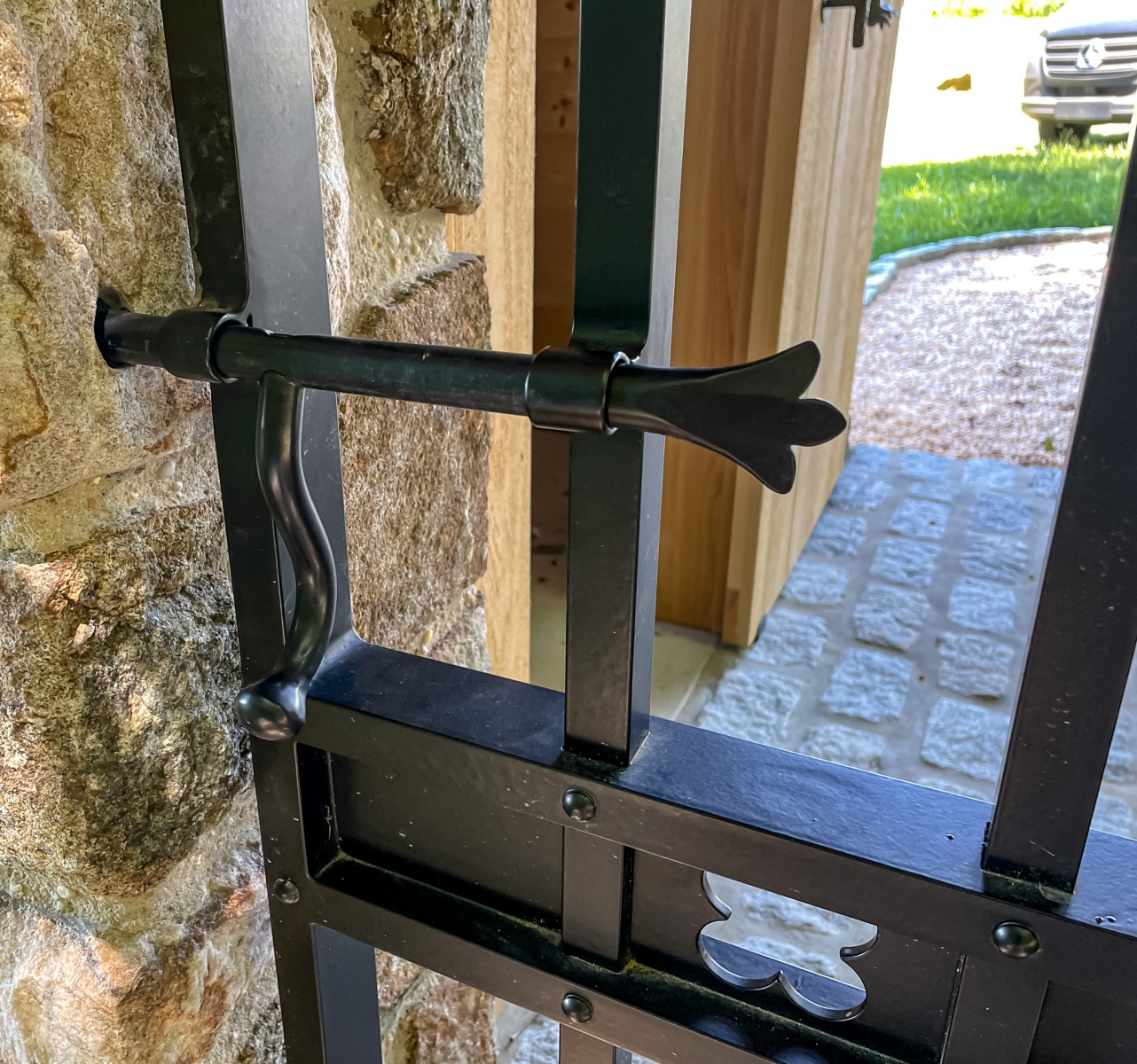

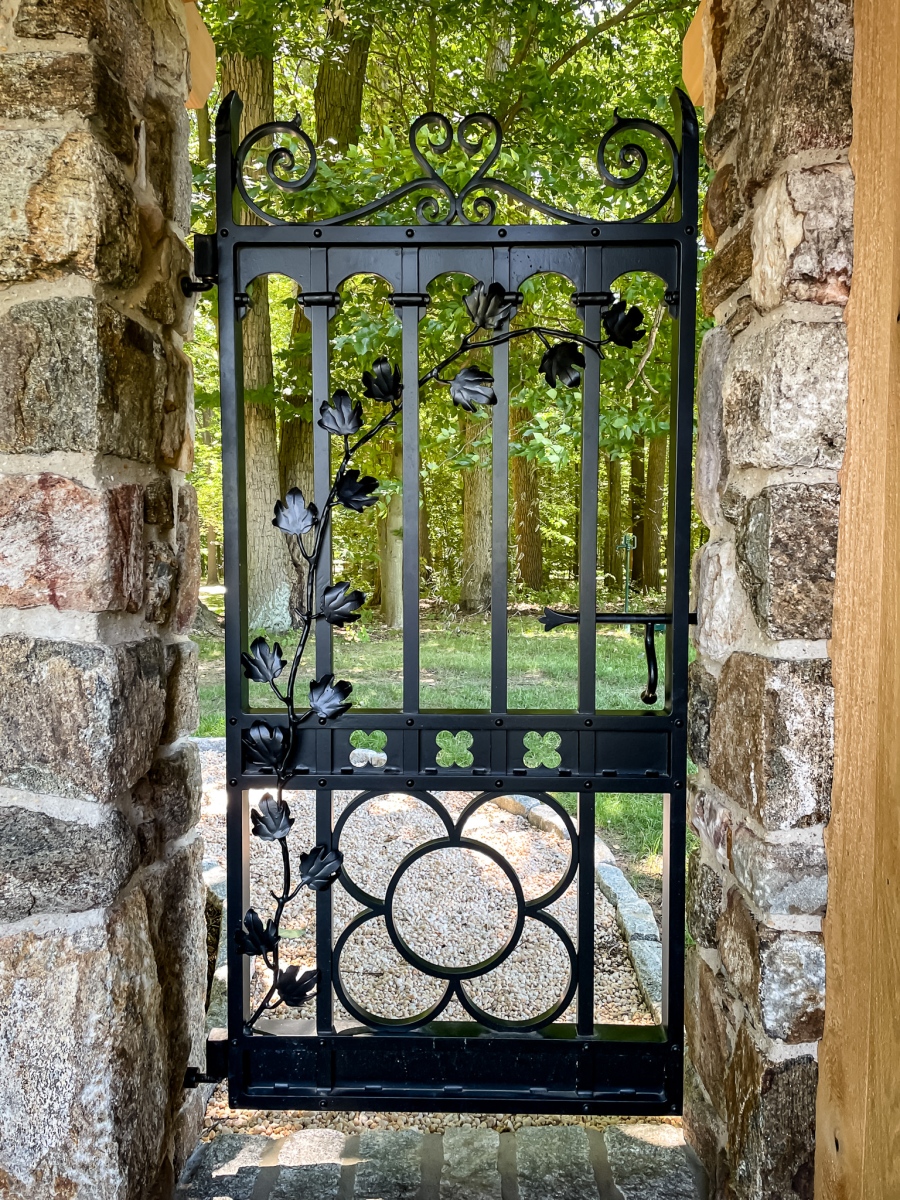

For this exceptional driveway gate project, the client also wanted a pedestrian gate entrance. For the gate latch, they desired a sliding bolt with a custom forged handle.



This Philadelphia property now portrays a grand driveway gate and pedestrian entrance that will last for generations to come.

Do you want a grand driveway gate of your own?! We are happy to help! Contact us here!

Need more inspiration? Check out our other work on Pinterest, Houzz, or our galleries!
